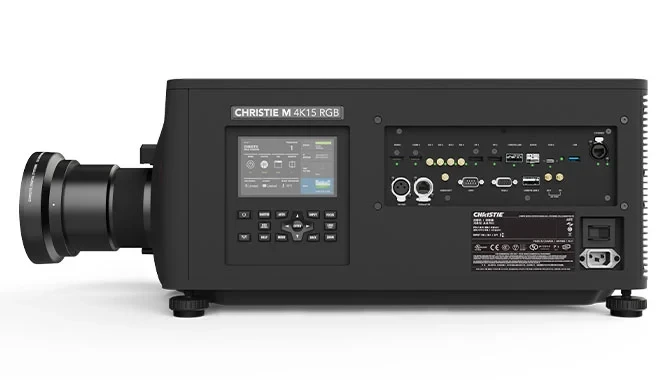

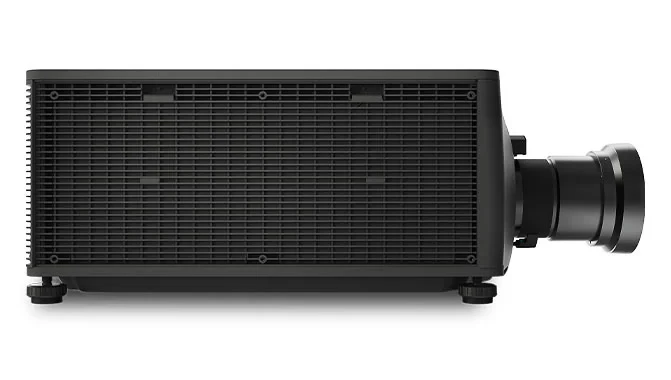

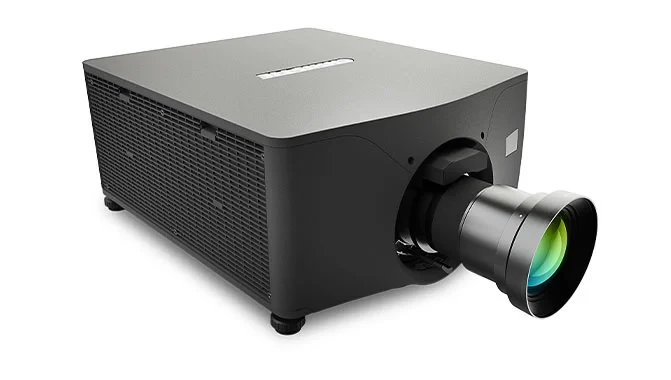

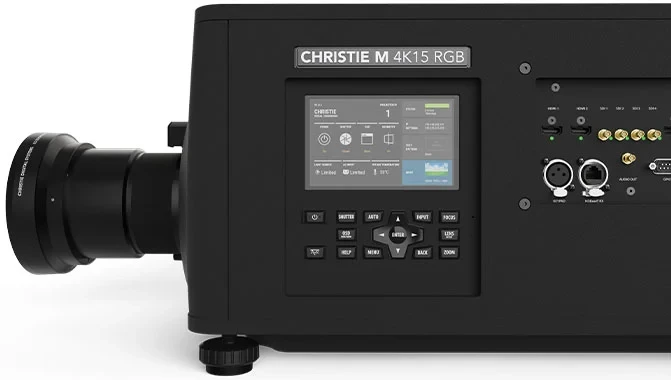

M 4K15 RGB pure laser projector

15,750 lumens, 4K UHD, 3DLP, RGB pure laser projector

4K UHD (3840 x 2160)

Resolution

Solid state pure RGB laser optical system

Illumination type

Illumination performance (hrs)

25,000 hours to 50% brightness when operated at 100% brightness** | 50,000 hours to 50% brightness when operated at 60% brightness**

Orientation

Omnidirectional

Image processing

Christie TruLife+ electronics, 1.2Gpx/s

Supported frame rates

24-60Hz, Mirage option: 96-120Hz 4K in 2D or 3D @ 60Hz per eye, Mirage Pro option: Mirage + 240-480Hz HD scaled

Sound level

• 41 dBA in quiet fan mode***
• 43.5 dBA in standard fan mode

Inputs

• 4 x 12G-SDI
• 2 x HDMI 2.0
• 2 x DisplayPort 1.2
• Fiber (QSFP+) for use with optional Christie Link Transmitter (1 input/1 output)
• HDBaseT
• 3D sync (in/out)

Control

• Ethernet - Control and Web UI
• RS232 (Serial)
• GPIO
• Wired keypad

User controlled warping and blending

• Standard: Christie Twist™ (software can be downloaded at no extra charge)
• Optional: Christie Twist Premium and Twist Pro

Automated warping and blending

• Standard: Mystique™ Lite (software can be downloaded at no extra charge and requires an off-the-shelf Web/Ethernet camera.)
• Optional: Mystique Essentials, Mystique Pro Venue, Mystique Large Scale Experience Edition

Multi-projector management

• Christie Conductor software monitors and controls up to 256 projectors and can be downloaded at no extra charge

Line voltage

• 100-120 VAC @ 12A 50/60 Hz at full brightness
• 200-240 VAC @ 6A 50/60 Hz single phase

Power consumption

• 1212W max (4,136 BTU/hr)
• 827W typical (2,822 BTU/hr)

Cooling

• Liquid, self-contained

Laser class

• Class 1 — Risk Group 2 (with lenses below 1.5:1 throw ratio)
• Class 1 — Risk Group 3

Operating environment

• 41-104°F (5-40°C)
• Relative humidity: 10-80% non-condensing

Dimensions

• Size (LxWxH): 24.3 x 20.7 x 10.6" - (617 x 525 x 270 mm)
• Weight: 83.8 lbs. (38.1 kg) without lens

Limited warranty

• 3 years
