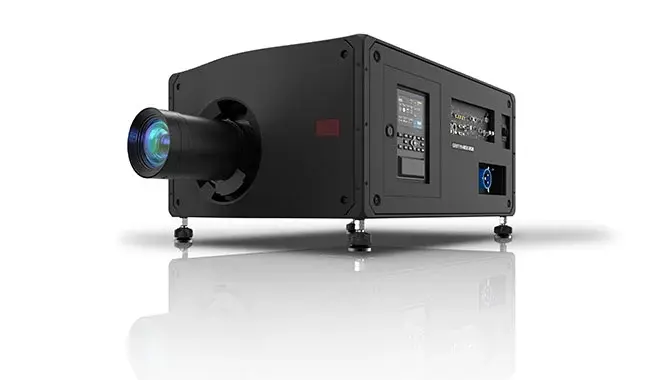

Griffyn 4K50-RGB pure laser projector
50,000 lumens, native 4K, 3DLP, RGB pure laser
4K (4096 x 2160)
Resolution
RGB pure laser
Illumination type
25,000 hours at 100% brightness | 50,000 hours at 60% brightness**
Illumination performance (hrs)
Orientation
Omnidirectional
Image processing
Christie TruLife+™ electronics, 1.2Gpx/s
Supported frame rates
Standard: 24-60Hz | Christie Mirage option: 4K@120Hz and 4K 3D@60Hz per eye | Christie Mirage Pro option: all the features of the Mirage option plus 2K@240-480Hz and Christie View simultaneous multi-content viewer
Standard inputs
- HDMI 2.1
- 2 x HDMI 2.0
- 4 x Micro BNC (12G-SDI)
- 2 x DisplayPort 1.4
- 2 x DisplayPort 1.2
- Fiber (QSFP+) for use with Christie Link Transmitter (1 input/1 output)
- SDVoE (Christie Terra®)
- 3D Sync (1 Input/1 Output)
Control
- Ethernet - Control and Web UI
- RS232 (Serial)
- GPIO
- Wired keypad
Sound level
- 44 dBA/54 dBA***
Input line voltage
- 200-240 VAC, 19A, 50/60Hz Single phase
- Connector: IEC60309 30A
Power consumption
- 2800W typical (9,550 BTU/hr)
- 3800W max (13,000 BTU/hr)
Cooling
- Liquid, self-contained
Laser class
- Class 1, Risk Group 3 (N4)
Operating environment
- 5-40 C (41-104 F)
- Relative humidity: 10-80% non-condensing
Dimensions
- (LxWxH): 36.3 x 25 x 15"
- (922 x 635 x 380mm) not including lens
Weight
- 197lbs (89.3 kg) (N5)
Shipping dimensions (L x W x H)
- 47 x 33 x 30" (1194 x 838 x 762mm)
Shipping Weight
- 261lbs (118.39kg)
Limited warranty
- 3 years
Multi-projector management (optional)
- Christie Conductor - monitors/controls up to 256 projectors on a single network and can be downloaded at no extra charge
