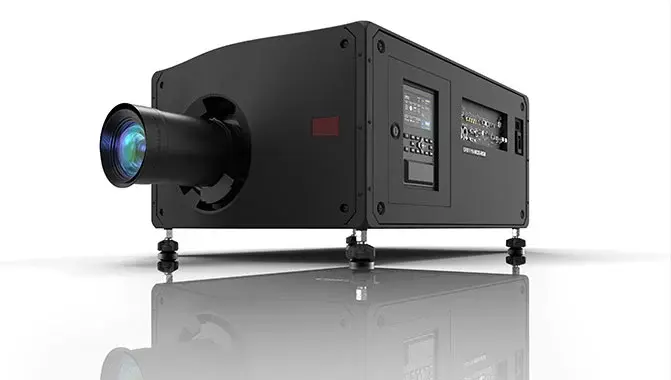

Griffyn 4K35-RGB pure laser projector

36,500 lumens, native 4K, 3DLP, RGB pure laser projector

4K (4096 x 2160)

Resolution

RGB pure laser

Illumination type

25,000 hours at 100% brightness | 50,000 hours at 60% brightness**

Illumination performance (hrs)

Orientation

Omnidirectional

Image processing

Christie TruLife+™ electronics, 1.2Gpx/s

Standard inputs

• HDMI 2.1
• 2 x HDMI 2.0
• 4 x Micro BNC (12G-SDI)
• 2 x DisplayPort 1.4
• 2 x DisplayPort 1.2
• Fiber (QSFP+) for use with Christie Link Transmitter (1 input/1 output)
• SDVoE (Christie Terra®)
• 3D Sync (1 Input/1 Output)

Control

• Ethernet - Control and Web UI
• RS232 (Serial)
• GPIO
• Wired keypad

Supported frame rates

• Standard: 24-60Hz
• Mirage option: up to 120Hz at 4K resolution and 4K 3D content at 60Hz per eye
• Mirage Pro option: all the features of the Mirage option plus 240-480Hz at 2K resolution and Christie View simultaneous content viewer

Sound level

• 43 dBA/45 dBA***

Input line voltage

• Single phase 200-240 VAC, 14A, 2600W max (8,870 BTU/hr)
• Connector: 30A IEC60320 C20 Inlet

Power consumption

• 1800W typical (6,140 BTU/hr)
• 2800W max (9,553 BTU/hr)

Low line power consumption

• Limited brightness mode: 100-120V, 12A, 1200W max (4100 BTU/hr)****

Cooling

• Liquid, self-contained

Laser class

• Class 1 - risk group 3

Operating environment

• 5-40°C (41-104°F)
• Relative humidity: 10-80% non-condensing

Dimensions (L x W x H)

• 36.3 x 25 x 15"
• (922 x 635 x 380mm) not including lens

Weight

• 179lbs (81.2kg)

Shipping dimensions (L x W x H)

• 47 x 33 x 30" (1194 x 838 x 762mm)

Shipping Weight

• 249lbs (112.9kg)

Limited warranty

• 3 years
