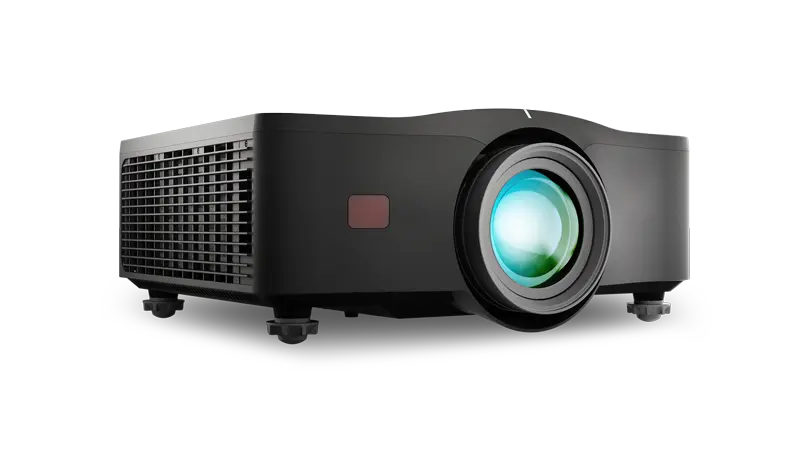

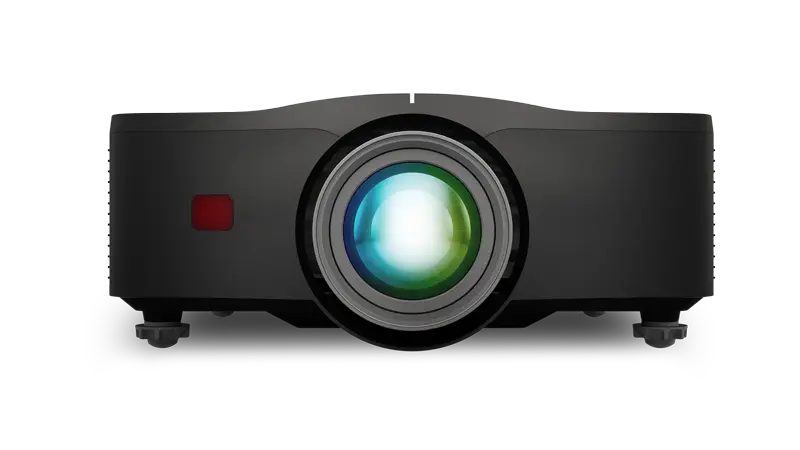

DWU960-iS 1DLP laser projector

9,600 lumen, WUXGA, 1DLP laser projector, fixed motorized zoom lens

WUXGA (1920 x 1200)

Resolution

High-efficiency blue laser phosphor

Illumination type

Illumination performance (hrs)

20,000 hours to 50% brightness

Orientation

Omnidirectional

Pixel clock rate

594 MHz (4096 x 2160); 162 MHz (1600 x 1200)

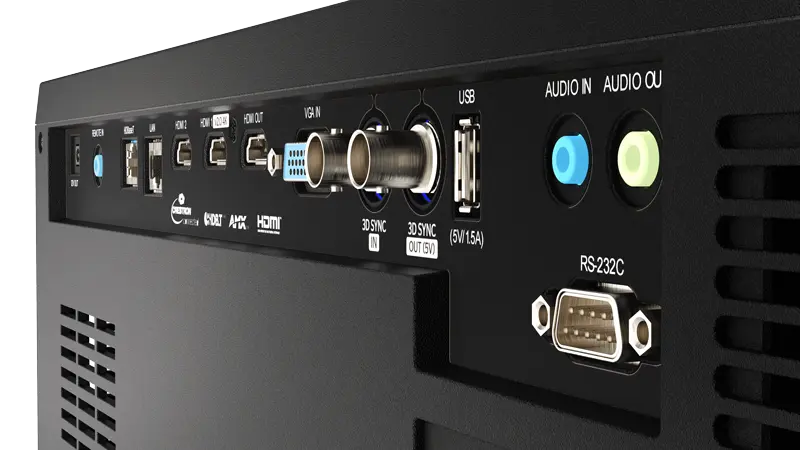

Standard inputs

• HDMI (1.4a)

• HDMI 2.0

• HDBaseT

• 3D Sync In (BNC)

• VGA

• Audio In (3.5mm phone jack)

• USB-A

• IR Reciever

Signal outputs

• 3D SYNC Out (BNC)

• HDMI

• Audio Out (3.5mm phone jack)

Lenses

• DWU960-iS: 1.25-2.0:1 (1.6x throw ratio) motorized lens - powered zoom, focus and offset

• DWU960ST-iS: 0.65-0.75:1 (1.1x zoom) motorized lens - powered zoom, focus and offset

Operating voltage

• AC 100-240V,50/60Hz

Operating current

• 6.5A

Horizontal Scan rate

• 15.375~91.146 KHz

Vertical Scan rate

• 24~ 85 Hz (120Hz for 3D feature)

Power consumption

• 500W @110VAC input | 660W @ 110VAC input

Sound level

• 27dBA-36dBA depending on the mode used

Operating environment

• 5-40°C (41-104°F)

• Relative humidity: 10-80% non-condensing

Dimensions

• (LxWxH): 18.9 x 16 x 5.7"

• (480 x 406 x 157mm)

Weight

• 30.2lbs (13.7kg)

Limited warranty

• Five-year or 20,000-hour warranty, whichever comes first, for models with part number ending in -02 or higher*

• Three-year or 20,000-hour warranty, whichever comes first, for models with part number ending in -01
