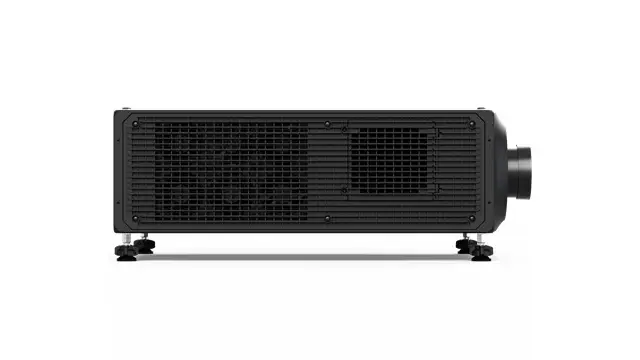

Crimson Series

31,500 Lumens

WUXGA (1920 x 1200)

Resolution

Laser phosphor with Christie BoldColor Technology (IPX5 rated)

Illumination type

Illumination performance (hrs)

20,000 hours to 50% brightness

Orientation

Omnidirectional

Image processing

Christie TruLife electronics 60Hz standard, 120Hz optional

Standard inputs

• HDBaseT
• HBMIC - High Bandwidth Multi-Input Card
• - 2 x 12GSDI
• - HDMI 2.0
• - DisplayPort 1.2
• - Christie Link (QSFP+ Fiber)

Optional inputs

• 2nd High Bandwidth Multi-Input Card
• Dual 3G SD/HD-SDI input card
• Dual Link DVI input card
• Twin DisplayPort input card
• Twin HDMI input card

Control & networking

• - Ethernet (10/100) RJ45
• - RS232 in
• - Wired Keypad (XLR)
• - Built-in Backlit Keypad with Color Display
• - GPIO (D-SUB 9-pin male connector)
•

Lens options

• 0.37:1 UST
• 0.67:1
• 1.1:1
• 0.8-1.16:1
• 1.16-1.49:1
• 1.4-1.8:1
• 1.8-2.6:1
• 2.6-4.1:1
• 4.1-6.9:1
• 6.9-10.4:1

Operating environment

• Temp: 40 to 104°F (5 to 40°C)
• Humidity: 10-80% non-condensing
•

Power requirements

• Main power:
• - Electrical Rating: 200-240 VAC, 16A max., 50/60 Hz
• - Inlet Type: IEC320-C20
• - 2760 W Power Consumption
• - 10,929 BTU/Hr dissipation
• Limited mode:
• - Electrical Rating: 100-240Vac, 6-15A, 50/60Hz
• - Inlet type: IEC320-C14

Dimensions (L x W x H)

• 37.7 x 25.0 x 11.9"
• 957 x 635 x 302mm

Physical weight

• 176.8 lbs (80.2kg)

Limited warranty

• 3 years
