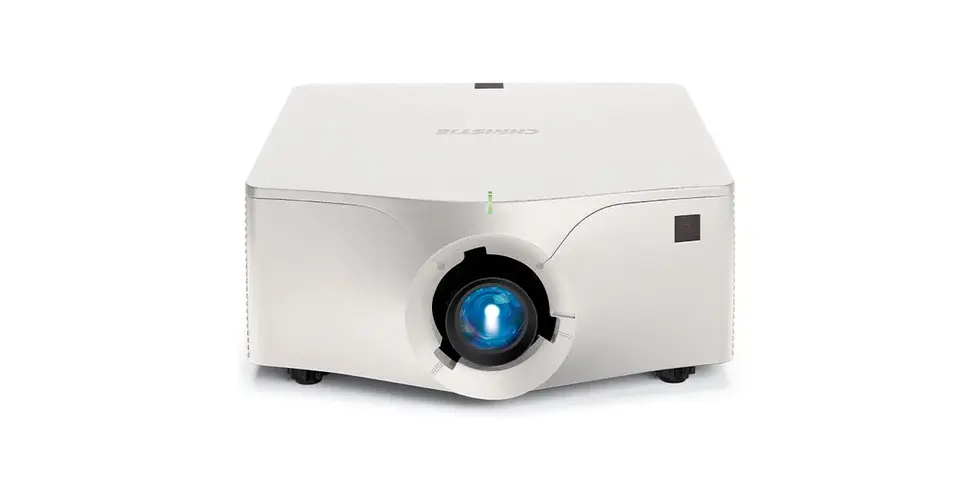

Christie DWU880-GS

9,500 lumen, WUXGA, 1DLP laser projector

Resolution

WUXGA (1920 x 1200)

Illumination type

High-efficiency blue laser phosphor

Illumination performance (hrs)

20,000 hours to 50% brightness

Orientation

Omnidirectional

Scan rates

Horizontal: 15-91kHz Vertical: 24-120Hz

Pixel clock rate

594 MHz (4096 x 2160)

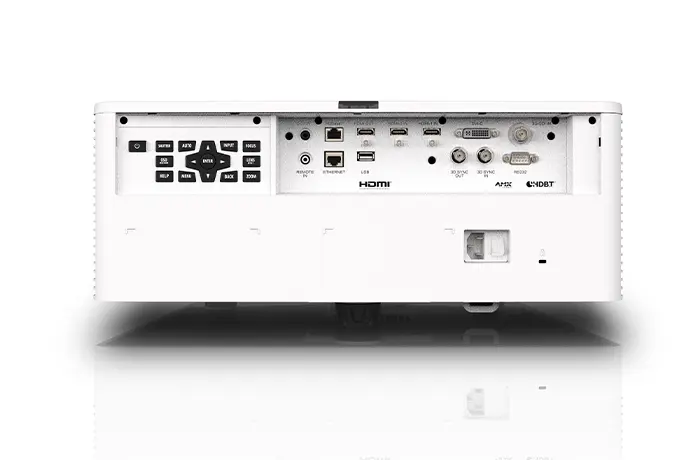

Signal inputs

• Standard:
• - HDMI 2.0 x 2 (HDCP 1.4/2.2)
• - DVI-D x 1 (digital only)
• - RJ45 x 1 (HDBase T)
• - 3G-SDI x 1 (BNC)
• - USB x 1 (Type A)

Control and networking

• - RS-232 in
• - Control via HDBaseT
• - Ethernet (10/100) RJ-45
• - Wired remote control (3.5mm stereo)
• - Loop out available for daisy chaining

Power requirements

• Operating voltage: Normal: 100-240 VAC @ 50/60 Hz
• Power consumption: Normal mode: 620W (max)
• Operating current: Normal mode: 6.5A (100V)

Lenses

• Motorized interchangeable lens suite

Signal outputs

• - HDMI

Dissipation

• Normal Mode: 2,285 BTU/hr
• ECO2 Mode: 1,125 BTU/hr

Audible noise

• Standard mode: 38dBA
• Eco2 mode: 36dBA

Operating environment

• 0-40°C (32-104°F)
• Relative humidity: 10-85% non-condensing

Dimensions (L x W x H)

• Size: 21.9 x 18.9 x 7.5 " (555 x 480 x 190mm)
• Weight: 41.9lbs (19kg) w/o lens

Limited warranty

• - 5 years parts and labor on the projector
• - 5 years or 20,000 hours parts and labor on the illumination system*
• - Contact an authorized Christie representative for full details of our limited warranty
• - *Please reference the Christie Standard Limited Warranty document for details.

Standard accessories

• - IR remote with wired remote jack (wire not included)
• - AC line cord for projector head
• - Rear input/keypad panel cover
• - User manual

Warpin​g and blending

• Standard:
• - Christie Twist
• Optional:
• - Christie Twist Premium and Twist Pro
• - Christie Mystique automated camera-based alignment

Shipping dimensions (L x W x H)

• 29.9 x 23.6 x 14.7" (759 x 599 x 373mm)
