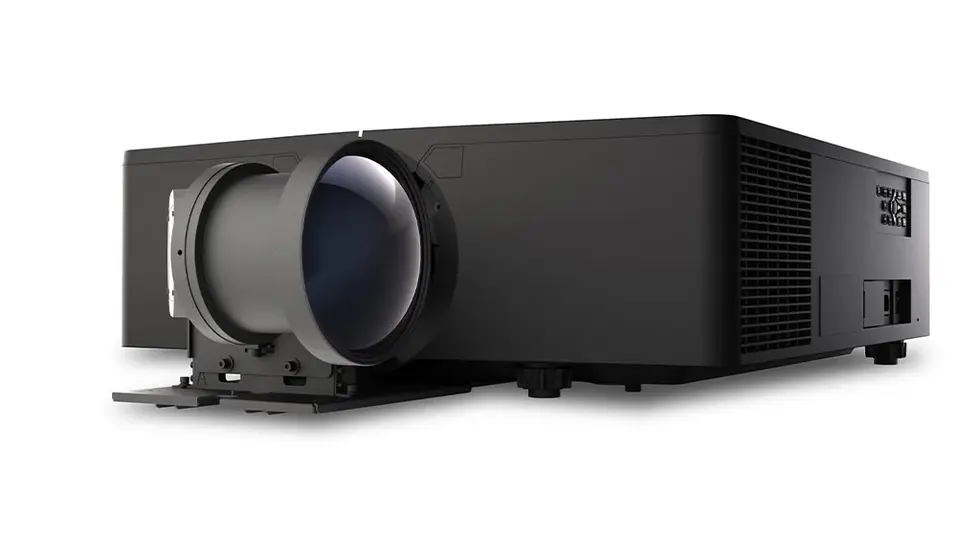

Christie DWU23-HS

23,650 lumen, WUXGA, 1DLP laser projector, BoldColor+ technology



Resolution

WUXGA (1920 x 1200)



Illumination type

Laser phosphor with Christie BoldColor+™ technology



Illumination performance (hrs)

20,000 hours to 50%



Scan rates

Horizontal: 15-91kHz Vertical: 24-120Hz



Pixel clock rate

600MHz



Signal i​nputs

  • Standard:

  • HDMI 2.0b x 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom)

  • - DP x 1

  • - USB x 1 (Type A)

  • - HDBaseT (RJ45) x 1

  • Signals:

  • - Horizontal and vertical scaling while maintaining aspect ratio (all inputs)



3D inputs

  • - HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential @1080p up to 120Hz

  • - 3D sync in (BNC) – for genlocking projectors

  • - 3D sync out (BNC) – for genlocking projectors, or controlling emitter or polarizer

  • - Active shuttered and passive polarized stereoscopic 3D



Signal outputs

  • - 3GSDI (BNC)

  • - HDMI x1 (HDMI out)

  •



Control and networking

  • - HDBaseT (RJ45 x 1)

  • - RJ45 x 1 (Ethernet Control over wired network connection)

  • - RS232 x 1

  • - Built-in backlit keypad

  • - IR Remote

  • - 12VDC trigger at 200mA (ID:2.5mm)

  • - Remote in: 3.5mm stereo female (provides serial communications and power)

  • - Loop out available for daisy chaining

  • - DC JACK 12VDC, 200 mA



Warpin​g and blending

  • Standard:

  • - Christie Twist™

  • Optional:

  • - Christie Twist Premium and Twist Pro

  • - Christie Mystique™ automated camera-based alignment

  •



Lens mount

  • - Boresight adjustable

  • - Motorized horizontal and vertical lens offset (memory available)

  • - Motorized zoom and focus adjustment (memory available for full ILS lenses)

  •



Lens options

  • Zoom/focus memory:

  • - 0:38:1 UST lens

  • - 1.2-1.5:1 zoom lens

  • - 1.5-2.0:1 zoom lens

  • - 2.0-4.0:1 zoom lens

  • - 4.0-7.0:1 zoom lens

  • - 7.2-10.8 zoom lens

  • No zoom/focus memory:

  • - 0.65-0.75 zoom lens

  • - 0.84-1.02:1 zoom lens

  • - 1.02-1.36:1 zoom lens



offsets for 0.38:1 UST lens

  • - +100/-55% Vertical

  • - +4/-28% Horizontal



offsets for 0.84-1.02:1

  • - +108/-74% Vertical

  • - +29/-42% Horizontal



offsets for 1.02:1-1.36:1

  • - +124/-98% Vertical

  • - +40/-49% Horizontal



offsets for full ILS Lenses

  • - ±140% Vertical

  • - ±50% Horizontal



Power requirements

  • Operating voltage:

  • - Normal mode: 200-240 VAC @ 50/60Hz

  • Power consumption:

  • - Normal mode: 1604W

  • - Eco1 mode: 1284W

  • - Eco2 mode: 802W

  • Operating current:

  • - Normal mode: 8.5A (200-240 VAC)



Dissipation

  • - Normal mode: 5302 BTU/hr

  • - Eco1 mode: 4006 BTU/hr



Audible noise

  • - Standard mode: 44dBA, Eco2 mode: 36dBA (2x wheel speed)

  • - Standard mode: 45dBA, Eco2 mode: 39dBA (3x wheel speed)

  •



Dimensions (L x W x H)

  • - 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet



Weight

  • 91.5lbs (41.6kg)



Shipping dimensions (L x W x H)

  • 37.99 x 31.30 x 14.37" (965 x 795 x 365mm)



Shipping Weight

  • 117.7lbs (53.3kg)



Operating environment

  • - Temp: 0 to 40° C (32 to 104° F)

  • - Humidity: 10 - 85% non-condensing



Regulatory

  • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns

  • - Directives: RoHS, REACH, WEEE

  • - Contact Christie for the timing of certifications: - UL/CSA/IEC 60950-1

  • FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI



Limited warranty

  • - Five years parts and labor on the projector

  • - Five years or 20,000 hours parts and labor on the illumination system*

  • - Contact an authorized Christie representative for full details of our limited warranty

  • - *Please reference the Christie Standard Limited Warranty document for details



Accessories

  • Standard:

  • - IR remote w/ wired remote jack (wire not included)

  • - AC line cord for projector

  • - Product Safety Guide

  • Optional:

  • - Christie One Mount Plus (140-117100-XX)

  • - One Mount Extender Rod (121-125109)

  • - One Mount Rigging Kit (used with One Mount, One Mount Plus Extender Rod) (121-126100-XX)

  • - Christie One Rigging Frame (140-113106-XX)

  • - Fog Filter with Frame (003-005714-XX)

  • - Fog Filter module (003-005715-XX)
