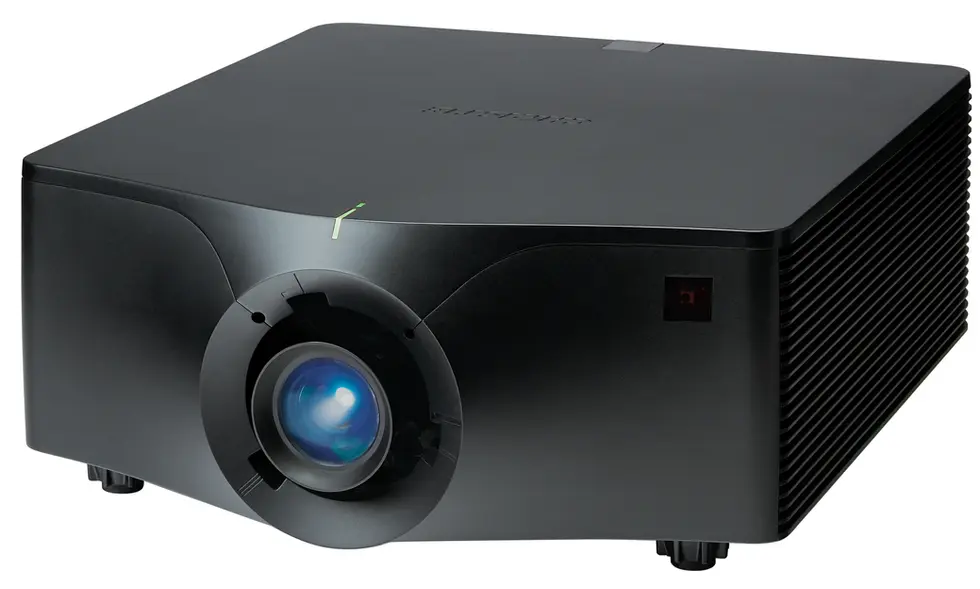

Christie DWU1400-GS

14,250 lumen, WUXGA, 1DLP laser projector

Resolution

WUXGA (1920 x 1200)

Illumination type

High-efficiency blue laser phosphor

Illumination performance (hrs)

20,000 to 50% brightness

Orientation

Omnidirectional

Scan rates

Horizontal: 15-91 kHz Vertical: 24-120 Hz

Pixel clock rate

594 MHz (4096 x 2160)

Signal inputs

• Standard:
• - HDMI 2.0 x 2 (HDCP 1.4/2.2)
• - DVI-D x 1 (digital only)
• - RJ45 x 1 (HDBase T)
• - RJ45 x 1 (Control over wired network connection)
• - 3G-SDI x 1 (BNC)
• - USB x 1 (Type A)
• - RS232 in
• - Built-in backlit keypad
• - Wired remote control 3.5mm stereo - loop out available for daisy chaining

Signal outputs

• - HDMI x 1 out

Controls and networking

• - Ethernet (10/100) RJ45
• - Built-in backlit keypad
• - Wired remote control (3.5mm stereo)
• - IR remote
• - Control via HDBaseT
• - RS232 in

Warpin​g and blending

• Standard:
• - Christie Twist™
• Optional:
• - Christie Twist Premium and Twist Pro
• - Christie Mystique™ automated camera-based alignment

Lens mount

• - Boresight adjustable
• - Motorized horizontal and vertical lens offset
• - Motorized zoom and focus adjustment

Lens options

• Lens UST 0.36
• Lens 0.65-0.75
• Lens 0.75-0.95 zoom G/GS
• Lens 0.95-1.22 zoom G/GS
• Lens zoom HP G/GS 1.22-1.52
• Lens 1.52-2.89 zoom G/GS
• Lens 2.90-5.50:1 zoom G/GS

offsets for 0.36:1 UST lens

• Fixed

offsets for all zoom lenses

• +100% vertical (600 pixels)
• +30% horizontal (288 pixels)

Power requirements

• Operating voltage: - 100-240 VAC @50/60 Hz
• Power consumption: 985W (max)
• Operating current: 10A (100V)

Dissipation

• - ECO1 Mode: 830 BTU
• - ECO2 Mode: 520 BTU

Audible Noise

• - Standard mode: 40dBA
• - Eco mode 37dBA

Dimensions (L x W x H)

• 21.9 x 18.9 x 7.5 "
• 555 x 480 x 190mm

Shipping dimensions (L x W x H)

• 29.9 x 23.6 x 14.7" (759 x 599 x 373mm)

Weight

• - 50.3lbs (22.8kg) w/o lens

Shipping weight

• - 66.1lbs (30kg)

Operating environment

• - 0-40 C (32-104 F)
• - Relative humidity: 10-85% non-condensing

Regulatory

• This product conforms to all relevant European directives, standards, safety, health and environmental concerns
• - Directives: RoHS REACH WEEE
• - Contact Christie for timing of certifications: UL/CSA/IEC 60950-1
• FCC Class A CE FDA CCC KC PSE BIS VCCI RCM BSMI CU EAC

Limited warranty

• - 5 years parts and labor on the projector
• - 5 years or 20,000 hours parts and labor on the illumination system*
• - Contact an authorized Christie representative for full details of our limited warranty
• *Please reference the Christie Standard Limited Warranty document for details

Accessories

• Standard:
• - IR remote with wired remote jack (wire not included)
• - AC line cord
• - User manual
• Optional:
• - One Mount Rigging Kit (121-126100-XX)
• - One Mount Extender Rod (121-125109-XX)
• - One Mount Plus (140-117100-XX)
• - One Mount (108-506102-XX)
• - QuikRig Rigging Frame (140-128102-XX)
