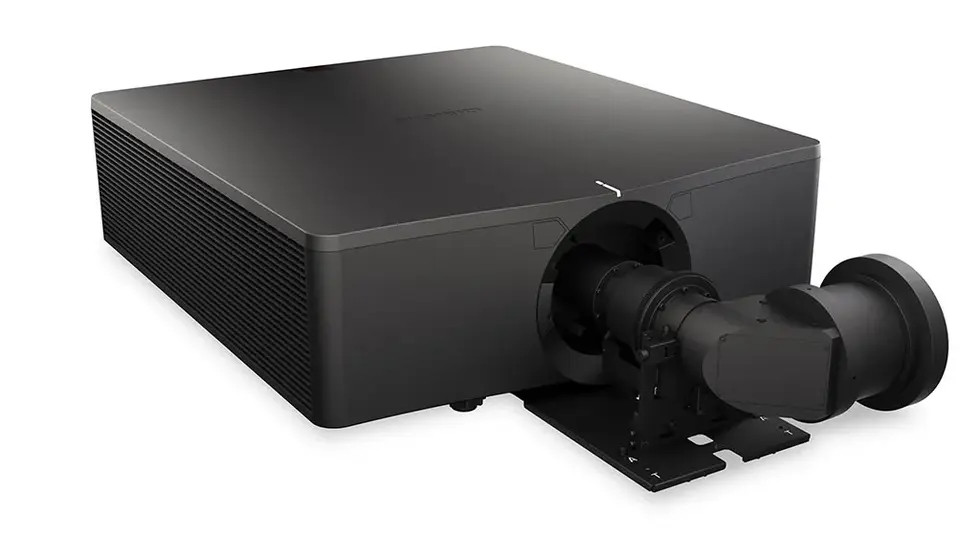

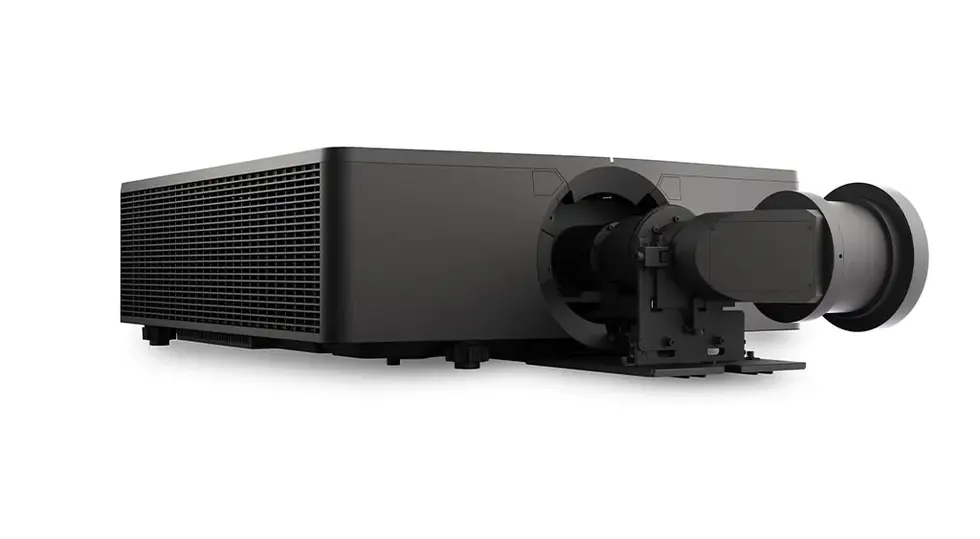

Christie D13WU2-HS

13,500 lumen, WUXGA, 1DLP laser projector, BoldColor Technology



Resolution

WUXGA (1920 x 1200)



Illumination type

Laser phosphor with Christie BoldColor Technology



Illumination performance (hrs)

20,000 hours to 50%



Scan rates

Horizontal: 15-91kHz Vertical: 24-85Hz



Pixel clock rate

162MHz



Signal i​nputs

  • Standard:
  • - HDMI x 2 (one on rear panel, one on bottom of projector, independently selectable)
  • - 3GSDI (BNC)
  • - DVI-D (digital only)
  • - USB (type A) - image viewer or WiFi dongle (optional)
  • - HDBaseT (RJ45)
  • Signals:
  • - HDTV formats VGA through to WUXGA (1920 x 1200)



3D inputs

  • - HDMI 1.4, HDBaseT - frame packed, top/bottom, side-byside (up to 120Hz output)
  • - 3D Sync In (BNC) - for genlocking projectors
  • - 3D Sync Out (BNC) - for genlocking projectors or controlling emitters



Signal outputs

  • - 3GSDI (BNC)
  • - HDMI x1 (HDMI out)
  •



Control and networking

  • - RS232 In
  • - Control via HDBaseT
  • - Ethernet (10/100) RJ45
  • - Built-in backlit keypad
  • - Wired remote control (3.5mm stereo) - loop out available for daisy chaining
  • - 12VDC trigger at 200mA (ID:2.5mm)



Warpin​g and blending

  • Standard:
  • - Christie Twist
  • Optional:
  • - Christie Twist Premium and Twist Pro
  • - Christie Mystique automated camera-based alignment
  •



Lens mount

  • - Boresight adjustable
  • - Motorized horizontal and vertical lens offset (memory available)
  • - Motorized zoom and focus adjustment (memory available for full ILS lenses)
  •



Lens options

  • Lenses:
  • - 0.38:1 UST lens
  • - 0.84-1.02:1
  • - 1.02-1.36:1
  • - 1.2-1.5:1
  • - 1.5-2.0:1
  • - 2.0-4.0:1
  • - 4.0-7.0:1



Power requirements

  • Operating voltage:
  • - Normal: 120-240VAC @ 60/50 Hz with 15A fuse
  • Power consumption:
  • - Normal mode: 1050W
  • - Eco1 mode: 900W
  • - Eco2 mode: 600W
  • Operating current:
  • - Normal mode: 12A (100-240V)/ 7A(200-240V)



Dissipation

  • - Normal mode: 5835 BTU/hr
  • - Eco1 mode: 4709 BTU/hr
  • - Eco2 mode: 2832 BTU/hr



Audible noise

  • - Standard mode: 38dB(A), Eco2 mode: 35dB(A) (2x wheel speed)
  • - Standard mode: 39dB(A), Eco2 mode: 37dB(A) (3x wheel speed)
  •



Dimensions (L x W x H)

  • 26.65 x 23.46 x 7.99" without feet
  • 677 x 596 x 203mm without feet
  • Shipping dimensions:
  • 36.34 x 33.19 x 20.20"
  • 923 x 843 x 513mm



Weight

  • 91.52lbs (41.6kg)



Shipping dimensions (L x W x H)

  • 37.99 x 31.30 x 14.37" (965 x 795 x 365mm)



Shipping Weight

  • 117.7lbs (53.3kg)



Operating environment

  • - Temp: 0 to 40° C (32 to 104° F)
  • - Humidity: 10 - 85% non-condensing



Regulatory

  • - Contact Christie for the timing of certifications:
  • - UL/CSA/IEC 60950-1 FCC Class A CE FDA CCC KC PSE CU BIS VCCI RCM TER
  • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • - RoHS REACH WEEE



Limited warranty

  • - Three years parts and labor on the projector
  • - Three years or 20,000 hours parts and labor on the illumination system*
  • - Contact an authorized Christie representative for full details of our limited warranty
  • - *Please reference the Christie Standard Limited Warranty document for details.
  •



Accessories

  • Standard:
  • - IR remote w/ wired remote jack (wire not included)
  • - AC line cords for projector head
  • - User manual
  • Optional:
  • - 1DWUSB-BGN (wireless dongle for video and control)
  • - HS fog filter covers + filters (order once per projector then only filters refills)
  • - HS fog filter refills (1 set)
  • - Replacement remote control
