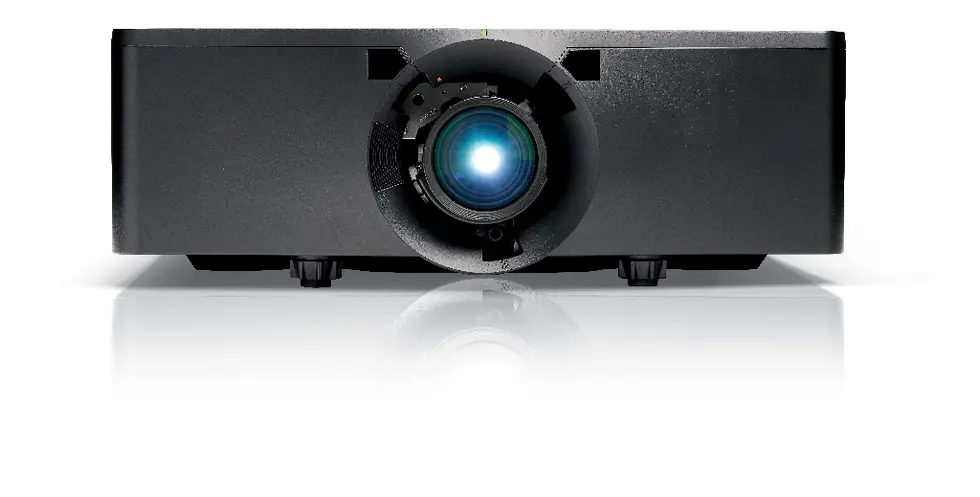

Christie 4K7-HS

7,600 lumen, 4K UHD, 1DLP laser projector, BoldColor Technology



Resolution

4K UHD (3840 x 2160)



Illumination type

Laser phosphor with Christie BoldColor Technology



Illumination performance (hrs)

20,000 hours to 50%



Scan rates

Horizontal: 15-91kHz Vertical: 24-85Hz



Pixel clock rate

Maximum input pixel rate: 594 Mpix/s (supports 4096 x 2160 @ 60Hz / 3840 x 2160 @ 60Hz over HDMI & DP) | Minimum input pixel rate: 27 Mpix/s (supports 480i @ 60Hz & 576i @ 50Hz



Signal inputs

  • Standard:
  • - HDMI x 2 (HDMI 2.0b, HDCP 2.2 Compliant)
  • - DVI-D (digital only)
  • - DisplayPort (versions 1.2)
  • - USB x1 (Type A)
  • - HDBaseT (RJ45 x1)
  • Optional:
  • - Terra SDVoE (optional input card)
  • - Wi-Fi® dongle (optional)
  • - 3G SDI (optional input card)
  • - HDBaseT (RJ45)
  • Signals:
  • - Standard video signals up to 4096 x 2160 @ 60Hz (over a single cable; HDMI 2.0 or DP 1.2)



3D inputs

  • 3D & 2D HFR:
  • - HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential at 100P up to 120Hz
  • - Signal input up to 1920 x 1080 @ 120Hz over HDMI, DP and DVI
  • - 3D sync in (BNC) – for genlocking projectors



Signal outputs

  • - 3GSDI (BNC)
  • - HDMI x1 (HDMI out)



Control and networking

  • - RS232 In
  • - Control via HDBaseT
  • - Ethernet (10/100) RJ45
  • - Built-in backlit keypad
  • - Wired remote control (3.5mm stereo) - loop out available for daisy chaining



Warpin​g and blending

  • Standard:
  • - Christie Twist
  • Optional:
  • - Christie Twist Premium and Twist Pro
  • - Christie Mystique™ automated camera-based alignment



Lens mount

  • - Boresight adjustable
  • - Motorized horizontal and vertical lens offset (memory available)
  • - Motorized zoom and focus adjustment (memory available for full ILS lenses)



Lens options

  • - 0.58:1 UST lens
  • - 0.85-1.02:1
  • - 1.2-1.73:1
  • - 1.7-2.21:1
  • - 2.21-2.83:1
  • - 2.83-5.66:1
  • - 5.66-10.81:1



Power requirements

  • Operating voltage:
  • - Normal: 100-240 VAC @ 50/60Hz
  • Power consumption:
  • - Maximum power consumption: 1070W
  • - ECO1 mode (80%): 865W
  • - ECO2 mode (50%): 540W
  • Operating current:
  • - Normal mode: 9.0A ±15% (120 VAC), 4.8A ±15% (220 VAC)
  • - ECO1 mode: 7.2A ±15% (120 VAC), 3.9A ±15% (220 VAC)
  • - ECO2 mode: 4.5A ±15% (120 VAC), 2.45A ±15% (220 VAC)
  • Dissipation:
  • - Normal mode: 3651 BTU/hr
  • - ECO1 mode: 2951 BTU/hr
  • - ECO2 mode: 1842 BTU/hr



Audible noise

  • - Typical: 39dB(A)
  • - Eco mode: 33dB(A)



Physical specs

  • - (L x W x H) 23.6 x 20.5 x 8.4" (600 x 520 x 214mm) without feet
  • - Shipping dimensions:
  • - (L x W x H) 35.6 x 29.9 x 14.8" (905 x 760 x 365mm)



Weight

  • - 74.96 lbs (34 kg)
  • - Shipping weight:
  • - 101.85 lbs (46.2 kg)



Operating environment

  • - Temp: 0 to 40° C (32 to 104° F)
  • - Humidity: 0 - 85% non-condensing



Regulatory

  • Contact Christie for the timing of certifications:
  • - UL/CSA/IEC 60950-1 FCC Class A CE FDA CCC KC PSE CU SABS BIS VCCI RCM Ukr TER SASO
  • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
  • - RoHS REACH WEEE
  •



Limited warranty

  • - Three years parts and labor on the projector
  • - Three years or 20,000 hours parts and labor on the illumination system*
  • - Contact an authorized Christie representative for full details of our limited warranty
  • - *Please reference the Christie Standard Limited Warranty document for details.



Accessories

  • Standard:
  • - IR remote w/ wired remote jack (wire not included)
  • - AC line cords for projector head
  • - User manual
  • Optional:
  • - 1DWUSB-BGN (wireless dongle for video and control)
  • - HS fog filter covers + filters (order once per projector then only filters refills)
  • - HS fog filter refills (1 set)
  • - Replacement remote control
