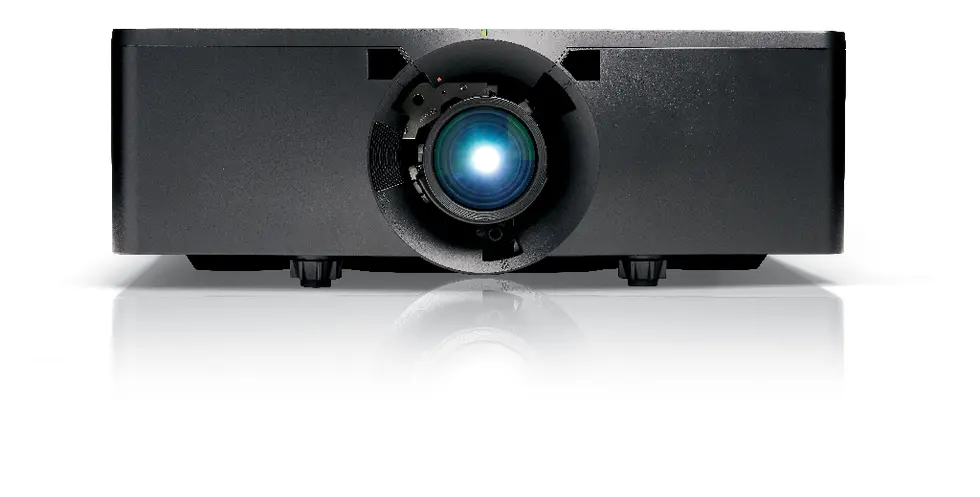

Christie 4K22-HS

22,500 lumen, 4K UHD, 1DLP laser projector, BoldColor+ technology



Resolution

4K UHD (3840 x 2160)



Illumination type

Laser phosphor with Christie BoldColor+™ technology utilizing a blue and a red laser



Illumination performance (hrs)

20,000 hours to 50%



Scan rates

Horizontal: 15-91kHz Vertical: 24-240Hz



Pixel clock rate

600MHz



Signal i​nputs

  • Standard:

  • HDMI 2.0b x 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom)

  • 12G-SDI x 1 (BNC)

  • - DP x 1

  • - USB x 1 (Type A)

  • - HDBaseT (RJ45) x 1



3D inputs

  • - HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential @1080p up to 120Hz

  • - 3D sync in (BNC) – for genlocking projectors

  • - 3D sync out (BNC) – for genlocking projectors, or controlling emitter or polarizer

  • - Active shuttered and passive polarized stereoscopic 3D



Signal outputs

  • - 12GSDI x 1 (BNC)

  • - HDMI x1 (HDMI out)

  •



Control and networking

  • - HDBaseT (RJ45 x 1)

  • - RJ45 x 1 (Ethernet Control over wired network connection)

  • - RS232 x 1

  • - Remote in: 3.5mm stereo female (provides serial communications and power)

  • - Loop out available for daisy chaining

  • - DC JACK 12VDC, 200 mA



Warpin​g and blending

  • Standard:

  • - Christie Twist™

  • Optional:

  • - Christie Twist Premium and Twist Pro

  • - Christie Mystique™ automated camera-based alignment

  •



Lens mount

  • - Boresight adjustable

  • - Motorized horizontal and vertical lens offset (memory available)

  • - Motorized zoom and focus adjustment (memory available for full ILS lenses)

  •



Lens options

  • - 0:38:1 UST lens

  • Zoom/focus memory:

  • - 0.65-0.75 zoom lens

  • - 1.2-1.5:1 zoom lens

  • - 1.5-2.0:1 zoom lens

  • - 2.0-4.0:1 zoom lens

  • - 4.0-7.0:1 zoom lens

  • - 7.2-10.8 zoom lens

  • No zoom/focus memory:

  • - 1.02-1.36:1 zoom lens



Offsets for 0.38:1 UST lens

  • - +100/-55% Vertical

  • - +4/-28% Horizontal



Offsets for 1.02:1-1.36:1

  • - +124/-98% Vertical

  • - +40/-49% Horizontal



Offsets for full ILS Lenses

  • - ±140% Vertical

  • - ±50% Horizontal



Power requirements

  • Operating voltage:

  • Normal mode: 100-240 VAC @ 50/60Hz

  • Supports 100-120 VAC @ reduced power with 80% brightness level output

  • Power consumption:

  • Normal mode: 1,553W

  • Eco1 mode: 1,281W

  • Eco2 mode: 806W

  • Operating current:

  • Normal mode: 8.5A (220-240 VAC) | 13.5A (100-120 VAC)



Dissipation

  • @220V:

  • - Normal mode: 5,295 BTU/hr

  • - Eco1 mode: 4,368 BTU/hr

  • - Eco2 mode: 2,748 BTU/hr



Audible noise

  • - Standard mode: 45dBA, Eco2 mode: 42dBA

  •



Dimensions (L x W x H)

  • - 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet



Weight

  • 95.9lbs (43.5kg)



Shipping dimensions (L x W x H)

  • 37.99 x 31.30 x 14.37" (965 x 795 x 365mm)



Shipping Weight

  • 124.3lbs (56.4kg)



Operating environment

  • - Temp: 0 to 40 C (32 to 104 F)

  • - Humidity: 10 - 85% non-condensing



Regulatory

  • - This product conforms to all relevant European directives, standards, safety, health and environmental concerns

  • - Directives: RoHS, REACH, WEEE

  • - Contact Christie for the timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI
