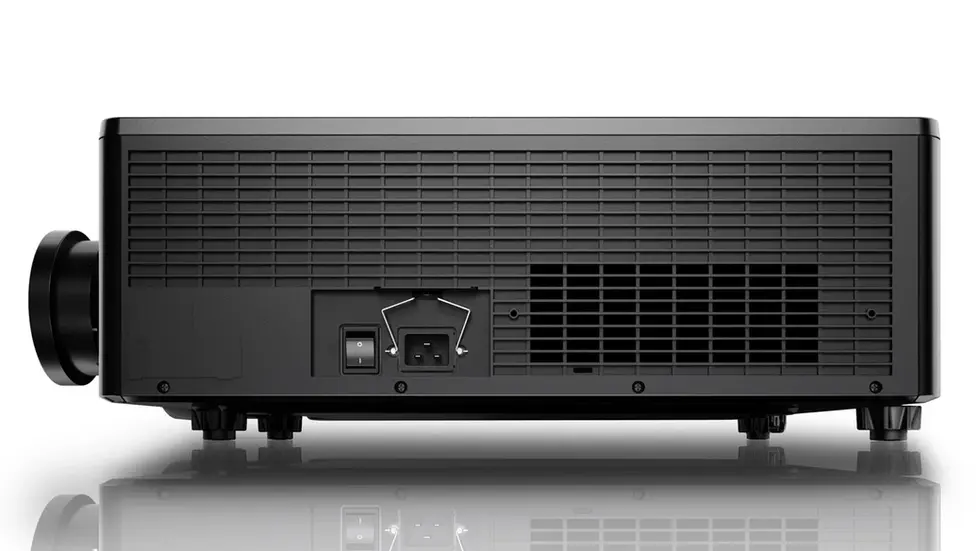

Christie 4K2100-JS

21,350 lumen, 4K UHD+, 1DLP laser projector

Resolution

4K UHD+ (3840 x 2400)

Illumination type

High-efficiency blue laser phosphor

Illumination performance (hrs)

20,000 hours to 50% brightness

Orientation

Omnidirectional

Scan rates

Horizontal: 15.375 KHz~ 135.0 KHz ; Vertical: 23.98 Hz ~ 120 Hz

Pixel clock rate

600 MHz

Signal i​nputs

• Standard:
• - HDMI 2.0b x 2
• - Display Port 1.2a x 1
• - USB Type A x 1
• - HDBaseT 3.0 (RJ45) x 1
• - 12G-SDI (BNC) x 1

Signal outputs

• - 12G-SDI (BNC)
• - HDMI x 1 out

Control and networking

• - HDBaseT 3.0 (RJ45 x 1)
• - RJ45 x 1 (Ethernet Control over wired network connection)
• - RS232 x 1
• - Remote in: 3.5mm stereo female (provides serial communications and power)
• - DC JACK 12VDC, 200 mA

Warpin​g and blending

• Standard:
• - Christie Twist
• Optional:
• - Christie Twist Premium and Twist Pro
• - Christie Mystique automated camera-based alignment

Power requirements

• - Operating voltage: 100-240 VAC @ 50/60 Hz
• - Power consumption: 1,340W (max)
• - Operating current: 6.09A (220-240 VAC)

Dissipation

• - Normal mode: 4,572 BTU/hr
• - Eco1: 3,685 BTU/hr
• - Eco2: 2,423 BTU/hr

Audible noise

• - Standard mode: 49dBA (Max.)
• - Eco2: 45dBA (Max.)

Dimensions (L x W x H)

• - 23.6 x 20.5 x 7.6" (600 x 520 x 193mm)

Weight

• - 64.76lbs (29.4kg)

Shipping dimensions (L x W x H)

• - 38 x 31.30 x 14.6" (965 x 795 x 370mm)

Shipping Weight

• - 94.71lbs (43.0kg)

Operating environment

• - Temp: 32-113 F (0-44 C) (0 – 2,500 feet altitude)
• - Relative humidity: 10 - 85% non-condensing

Regulatory

• - This product conforms to all relevant European directives, standards, safety, health and environmental concerns
• - Directives: RoHS, REACH, WEEE
• - Contact Christie for timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI

Limited warranty

• - Five years parts and labor on the projector
• - Five years or 20,000 hours parts and labor on the illumination system**
• - Contact an authorized Christie representative for full details of our limited warranty
