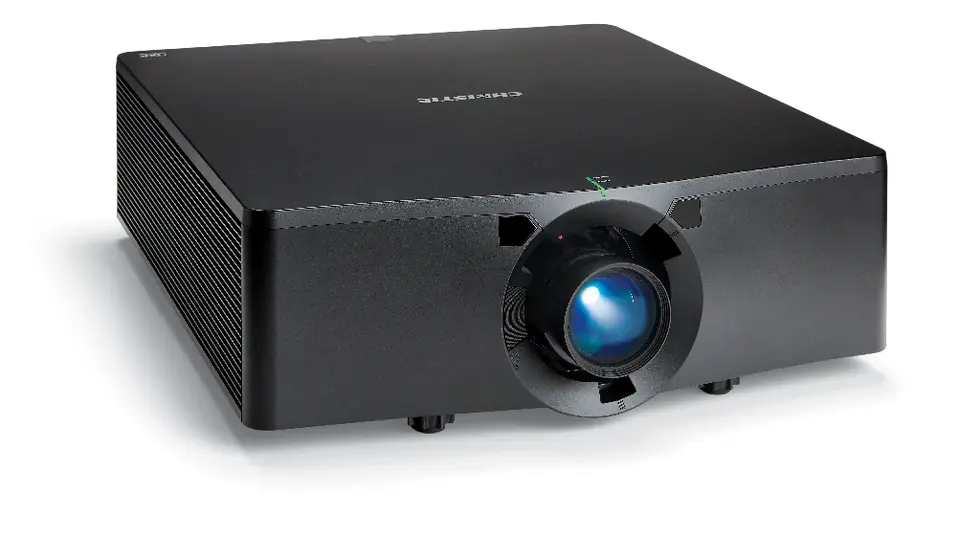

Christie 4K13-HS

14,800 lumen, 4K UHD, 1DLP laser projector, BoldColor+ technology





Resolution

4K UHD (3840 x 2160)



Illumination type

Laser phosphor with Christie BoldColor+™ technology



Illumination performance (hrs)

20,000 hours to 50%



Scan rates

Horizontal: 15-91kHz Vertical: 24-240Hz



Pixel clock rate

600MHz



Signal i​nputs

  • Standard:

  • HDMI 2.0b x 2 (HDCP 1.4/2.2) (one on rear panel, one on bottom)

  • 12G-SDI x 1 (BNC)

  • DP x 1

  • USB x 1 (Type A)

  • HDBaseT (RJ45) x 1

  • Signals:

  • Horizontal and vertical scaling while maintaining aspect ratio (all inputs)



3D inputs

  • HDMI 1.4, HDBaseT – frame packed, top/bottom, side-by-side (up to 120Hz output); frame sequential @1080p up to 120Hz

  • 3D sync in (BNC) – for genlocking projectors

  • 3D sync out (BNC) – for genlocking projectors, or controlling emitter or polarizer

  • Active shuttered and passive polarized stereoscopic 3D



Signal outputs

  • 12GSDI x 1 (BNC)

  • HDMI x1 (HDMI out)

  •



Control and networking

  • HDBaseT (RJ45 x 1)

  • RJ45 x 1 (Ethernet Control over wired network connection)

  • RS232 x 1

  • Remote in: 3.5mm stereo female (provides serial communications and power)

  • Remote out: 3.5mm stereo female

  • Loop out available for daisy chaining

  • DC JACK 12VDC, 200 mA



Warpin​g and blending

  • Standard:

  • Christie Twist™

  • Optional:

  • Christie Twist Premium and Twist Pro

  • Christie Mystique™ automated camera-based alignment

  •



Lens mount

  • Boresight adjustable

  • Motorized horizontal and vertical lens offset (memory available)

  • Motorized zoom and focus adjustment (memory available for full ILS lenses)

  •



Power requirements

  • Operating voltage:

  • Normal mode: 100-240 VAC @ 50/60Hz, 12A (110 VAC) 50-60Hz for US only

  • Power consumption:

  • Normal mode: 1030W

  • Eco1 mode: 854W

  • Eco2 mode: 545W

  • Operating current:

  • Normal mode: 5A (220-240 VAC) | 11A (100-120 VAC)



Dissipation

  • @220V:

  • Normal mode: 3512 BTU/hr

  • Eco1 mode: 2912 BTU/hr

  • Eco2 mode: 1858 BTU/hr



Audible noise

  • Standard mode: 42dBA

  • Eco2 mode: 40dBA



Dimensions (L x W x H)

  • 26.65 x 23.46 x 7.99" (677 x 596 x 203mm) without feet



Weight

  • 95.9lbs (43.5kg)



Shipping dimensions (L x W x H)

  • 37.99 x 31.30 x 14.37" (965 x 795 x 365mm)



Shipping Weight

  • 124.3lbs (56.4kg)



Operating environment

  • Temp: 0 to 40° C (32 to 104° F)

  • Humidity: 0 - 85% non-condensing



Regulatory

  • This product conforms to all relevant European directives, standards, safety, health and environmental concerns

  • Directives: RoHS, REACH, WEEE

  • Contact Christie for the timing of certifications: UL/CSA/IEC 60950-1 FCC Class A cTUVus CE FDA CCC KC PSE EAC BIS VCCI RCM Mexico BSMI



Limited warranty

  • Five years parts and labor on the projector

  • Five years or 20,000 hours parts and labor on the illumination system**

  • Contact an authorized Christie representative for full details of our limited warranty
