4K860-iS 1DLP laser projector

8,500 lumen, 4K UHD, 1DLP laser projector, fixed motorized zoom lens

4K UHD (3840 x 2160)

Resolution

High-efficiency blue laser phosphor

Illumination type

Illumination performance (hrs)

20,000 hours to 50% brightness

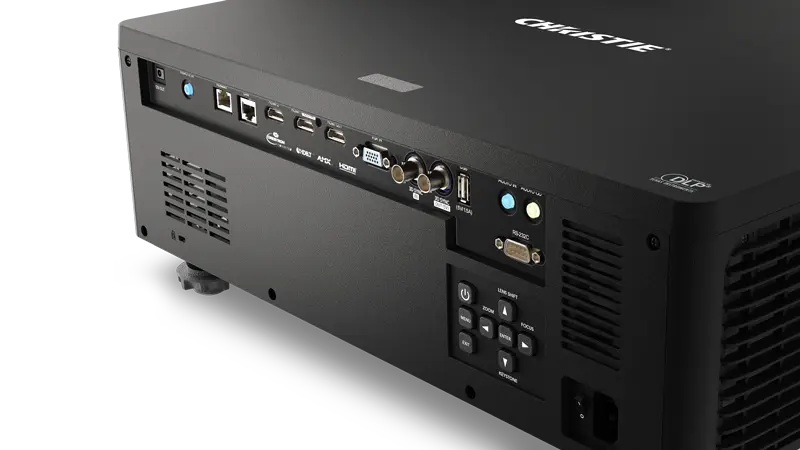

Standard inputs

• HDMI 2.0 x 2
• Display Port 1.2
• HDBaseT
• RJ45
• 3D Sync In (BNC)
• USB-A (5V Power)
• USB-B (service)
• RS-232
• Wire remote (3.5mm phone jack)
• IR Receiever

Signal outputs

• 3D SYNC Out (BNC)
• HDMI
• 12V Tigger (3.5mm phone jack)
• Audio Out (3.5mm phone jack)

Lenses

• 1.25-2.0:1 (throw ratio), 1.6x zoom, motorized lens - powered zoom, focus and lens shift

Operating voltage

• AC 100-240V,50/60Hz

Operating current

• 6.5A

Power consumption

• 660W

Operating environment

• 0-40°C (32-104°F)
• Relative humidity: 10-85%

Dimensions

• (LxWxH): 18.9 x 16 x 5.7"
• (480 x 406 x 157mm)

Weight

• 33.1lbs (15kg)

Limited warranty

• 5 years**
